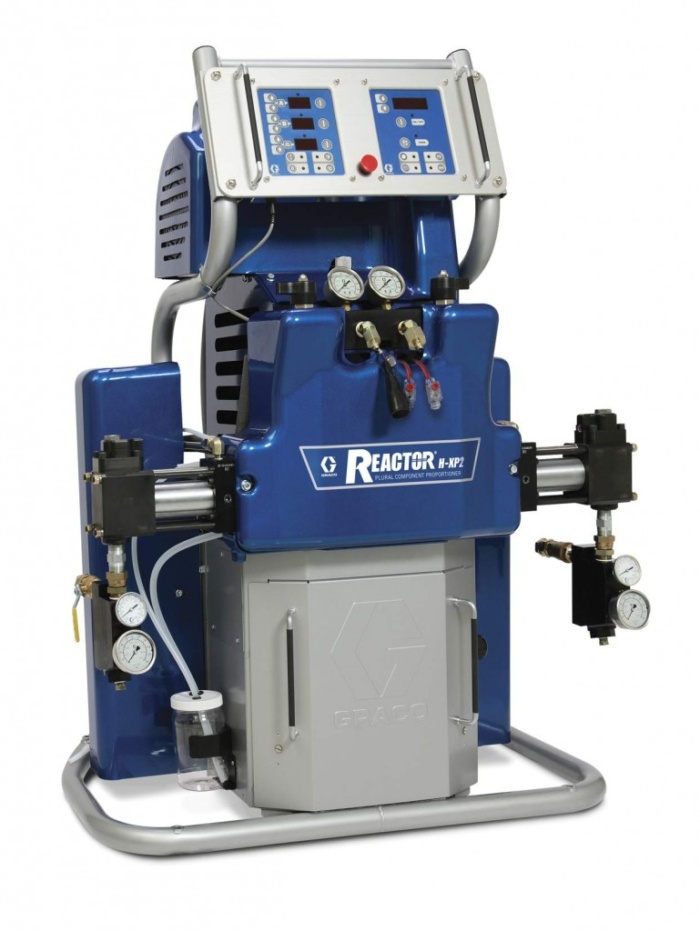

Reactor H-XP2

Graco's Reactor H-XP2 is one of the entry level Graco hydraulic proportioners, ideal for spraying polyurea and other fast-set coatings. Featuring lightweight yet durable hydraulics, you can be assured of the H-XP2's performance.
  • Performance-driven horizontal pumping system
  • System controls with diagnostics and auto-shutdown
  • Optional data reporting
  • 'Softstart' feature requires 1/3 less power draw during system start-up
Specifications Downloads
Heater wattage and power (15.3kW heater):100A-230V, 1-ph; 59A-230V, 3-ph; 35A-400V, 3-ph Maximum output:1.5 gpm (5.7 lpm) Maximum fluid working pressure:3500 psi (240 bar, 24.0 MPa) Maximum fluid temperature:190° F (88° C) Maximum hose length:310 ft (94 m) Applications:Concrete, potable water, truck bedliners, marine and shipbuilding, wastewater
Repair and Parts Manual

Click to view
Electrical Diagrams

Click to view
Operation Manual

Click to view
Brochure

Click to view
