D-Gun

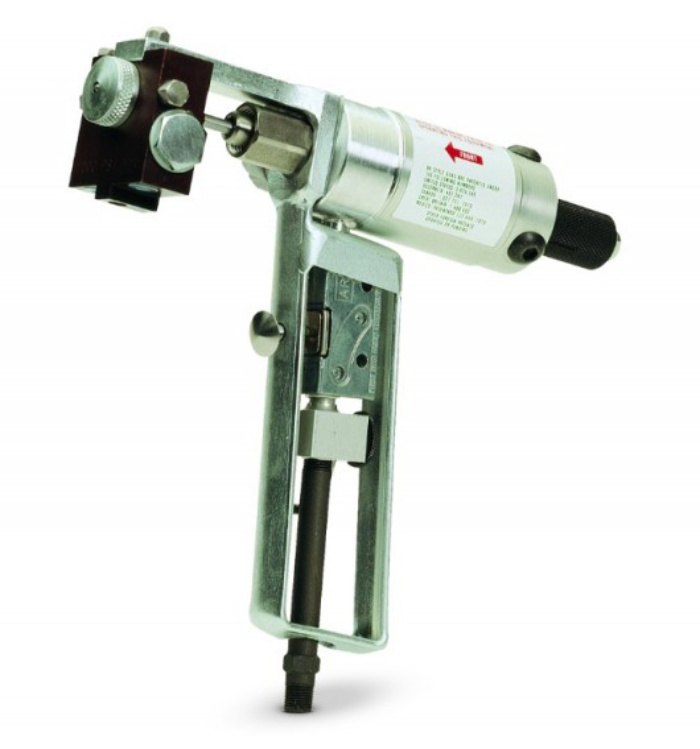

Graco D-Gun is ideal for small to midrange output foam applications such as interior roof and stud-wall spraying. A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application.
  • Lightweight, easy to operate and maintain
  • Mechanically self-cleaning so you eliminate costly solvent-flushing
  • Air cap allows for easy cleaning of the purge rod
  • Pattern control knob allows for fine tune adjustments
Materials Sprayed: Foam Only Maximum Output: 16 lb/min (7.2 kg/min) Minimum Output: 2 lb/min (1 kg/min) Maximum Fluid Working Pressure: 1000 psi (69 bar - 6.9 Mpa) Maximum working air inlet pressure: 110 psi (7.6 bar - 0.76 Mpa) Maximum Fluid Temperature: 150 F (65 C) Weight: 3.1 lb (1.4 kg)
